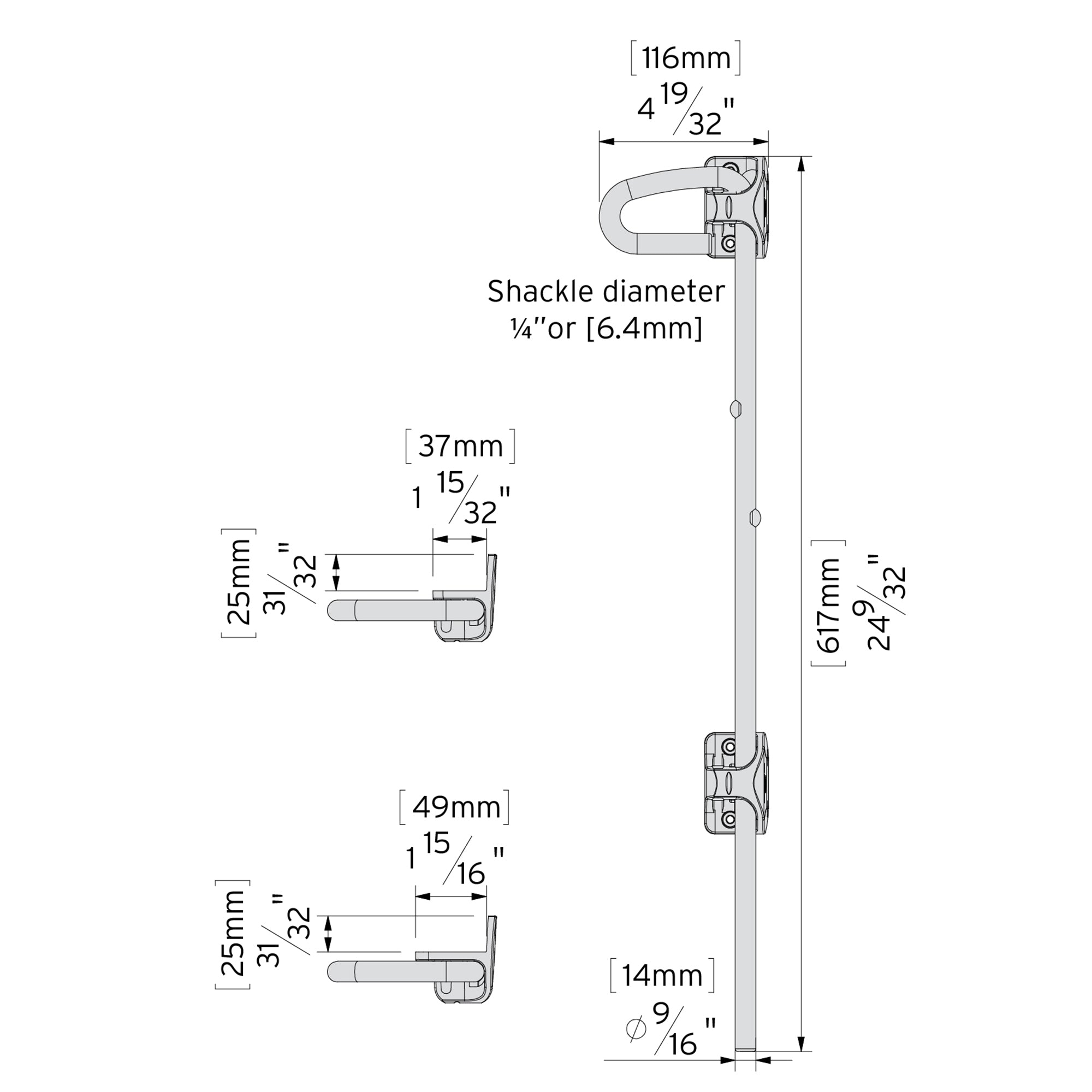

Q-Bolt™ Drop-Bolt

  • Padlockable Drop-Bolt
    • Powder coated, stainless steel drop-bolt in black or white
    • Padlockable; with padlock storage feature
    • Tough, moulded polymer mounting system
    • Retention tabs prevent bolt from dropping and dragging
    • Mounting systems for metal and wood/vinyl
    • Bolt lengths: 610 and 1020mm (24 and 40")
    • Optional Base plate retains bolt into ground
    • Lifetime Warranty


    FITTING INSTRUCTIONS
  • QBolt™ is an affordable, quality drop-bolt for retaining and securing driveway and other residential gates. This drop-bolt offers the option of padlock security, with the facility to store your padlock when not in use. A bolt retention feature prevents the rod from dropping and dragging across the driveways and also keeps the rod from being pulled out of the brackets when mounted to a gate. The housings are made of tough, rust-free polymers and the bolt is made from electro-polished stainless steel. The QBolt comes in two lengths – 610mm and 1020mm (24” and 40”) – to suit different styles of gate. An optional Base Plate helps retain the bolt into the ground surface and provides a neat, stylish finish. All models include alignment side-fixing legs for ease of installation and added fixing strength.
  • Brand Q-Bolt™
    Product Code QB124-QB140
    Gate Application Driveway Gate - Double, Driveway Gate - Single, Public/Commercial Gate, Security Gate, Privacy Gate
    Gate Material Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
    Approx Gate Size Any Size
    Gate Frame/Post Shape Square-to-Square
    Min Post Size 38mm+ (1½")
    Ideal Gate Gap 6mm (¼")
    Fixing Method Screw-On
    Colour/Finish Black, White
    Lock Type Padlockable
Bolt Lengths
Gate Material
Color
Black
