SureClose® ConcealFit For Doors

  • Hydraulic Door Closer/Hinge System
    • Easily installed internally within the door or wall cavity frame
    • Up to 7 different adjustments to ensure perfect installation
    • Easily accessed, adjustable closing and latching speed valves
    • Secure, safe and quiet operation with no visible moving parts
    • The innovative choice of Architects, Engineers and Designers
    • ADA (disability) compliant
    • 5 Year Limited Warranty

    FITTING INSTRUCTIONS

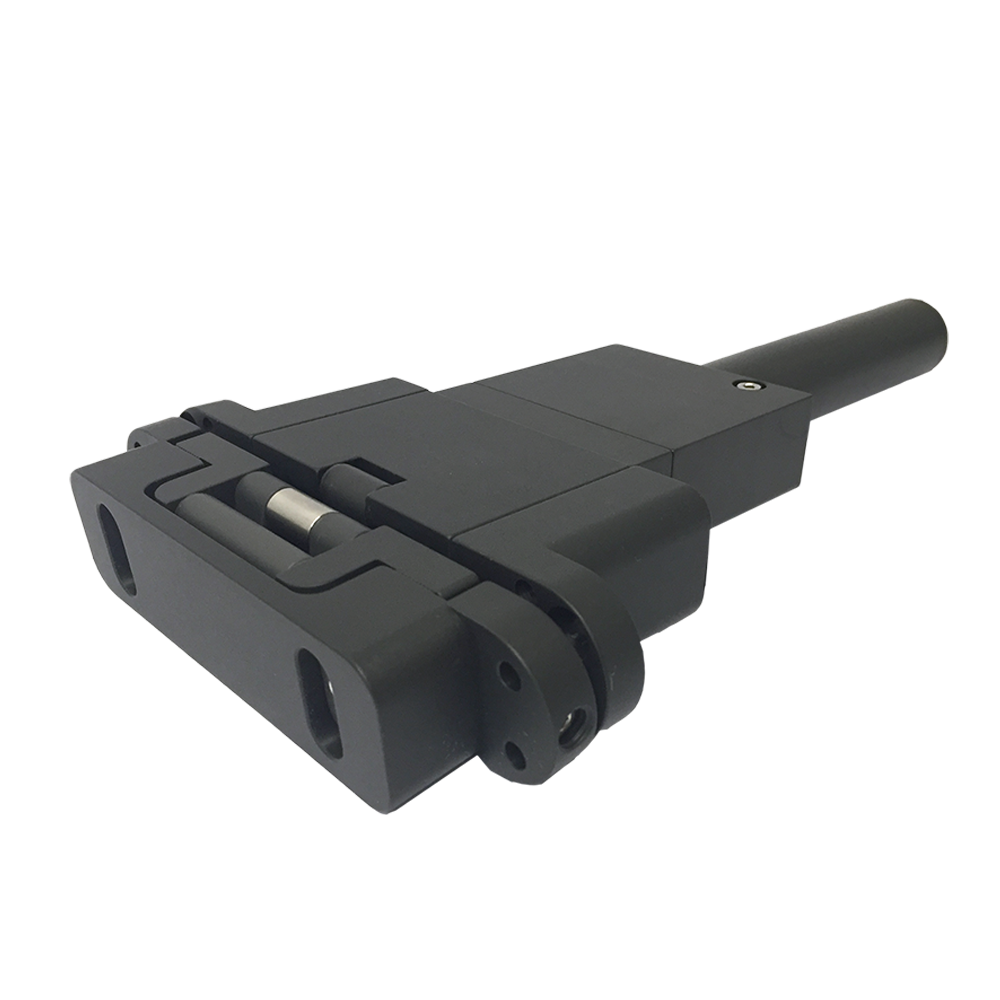

  • SureClose® CONCEALFIT Door Closer & Hinge Sets are high-quality, hydraulic units aimed at providing a concealed finish and a highly adjustable self-closing solution. They are ideal for interior and exterior wood, hollow-metal and aluminium doors and frames. When closed, the SureClose® CONCEALFIT system cannot be seen or tampered with. They also provide burglary and vandalism resistance. Superb engineering and patented design allow total concealment of the hinge-closer unit in a remarkably small housing.The Hinge-Closer is easily adjustable in three dimensions (horizontal, vertical and in/out) for fine positioning and speedy gate alignment. It features fine controls for primary closing speed, latching speed and backcheck. SureClose® CONCEALFIT is designed for premium flush doors and “invisible” doors. With NO hold-open feature, it opens to, and self-closes from, 125˚. Steel receivers for hollow-core doors, and routing templates and drill jig for wood gates, are sold separately. All SureClose® CONCEALFIT housings are made of high-grade aluminium.
  • Brand SureClose®
    Product Code 77108523 Kit, 78108513 Hinge Only
    Door Application Interior Door, Front Door, Fire Rated Door, Force Entry Resistant Door, Hotel Door, Theatre Door, Residential Garage Door, Soundproof Door
    Door Type Self-Closing, Residential and Commercial Flush Doors
    Door Material Wood Door, Hollow Core Door (Metal, Fibreglass FBG)
    Self-Closing Door Weight Up to 100kg (220lb)
    Approx Door Size 1220mm (Max 48”) Width
    Min Door Thickness 40mm (1 ¾")
    Adjustability Vertical +/- 2mm (5/64"), Horizontal +/- 1.25mm (3/64"), Door Clearance from 2mm (5/64") to 6mm (1/4")
    Fire Rating UL/cUL listed (20-minute)
    Fixing Method Screw-On
    Color/Finish Black Anodized
