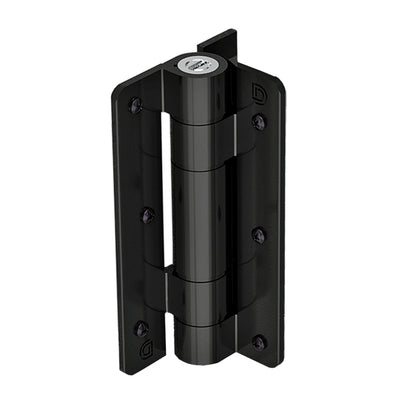

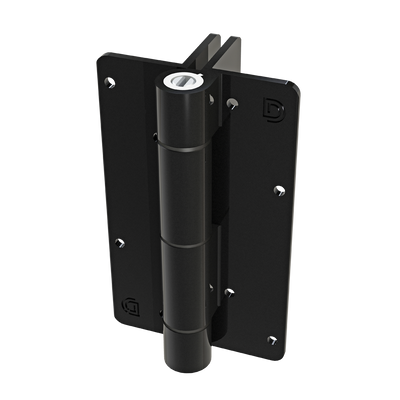

KwikFit™ ALUMINIUM

Traditionally Styled, Self-closing Gate Hinges

• Aluminium construction with powder-coated finish
• Wall and post-mount models available
• Internal stainless steel closing spring
• D&D-patented tension adjustment
• One-handed tension adjustment from either end
• Reversible mounting (right or left handed installation)
• Low-friction polymer washer material
• Self-closes gates up to 20kg (44lbs)

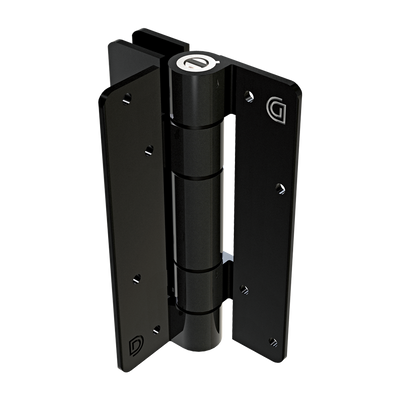

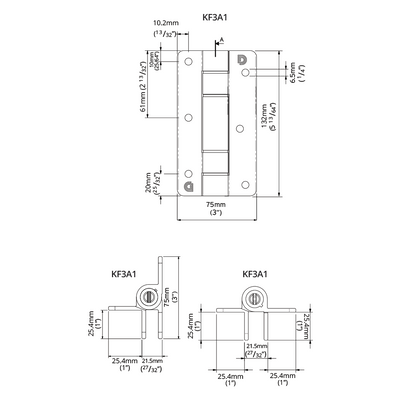

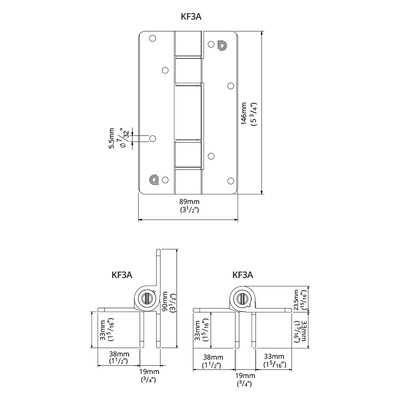

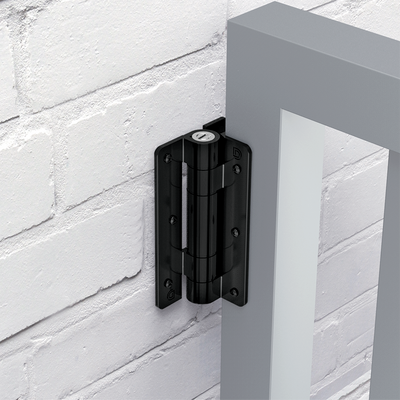

• Wall or Post-to-Gate option – KF3A and KF3A1

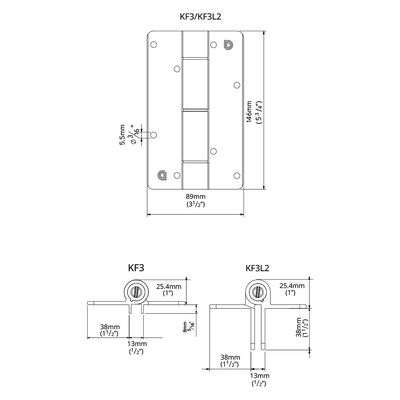

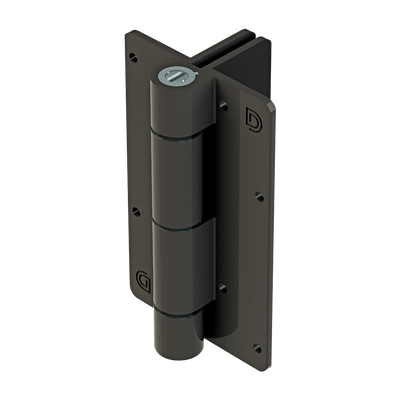

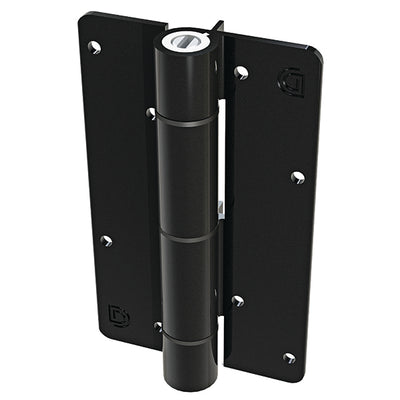

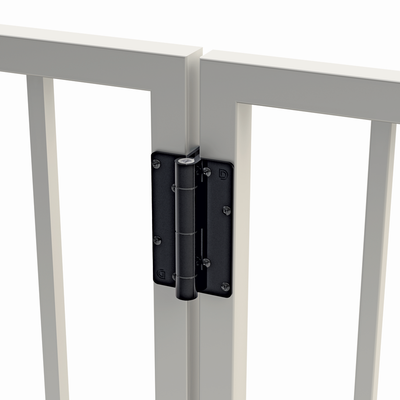

• Post-to-Gate – KF3 and KF3L2
KwikFit™ Aluminium adjustable, self-closing gate hinges are an ideal choice for light to medium-weight gates around the home. Tough, powdercoated aluminium construction with 6 adjustable tension settings provide a finer self-closing adjustment to suit a range of metal gates. No rusting, no binding, no sagging and no staining. Smooth, reliable closure. "Side-fitting" legs provide versatility and extra fitting strength. Recommend 12-guage fasteners.

Brand	KwikFit™
Product Code	KF3A1-KF3A-KF3-KF3L2
Gate Application	Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Security Gate, Privacy Gate
Gate Type	Self-Closing
Gate Material	Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
Self-Closing Gate Weight	Up to 20kg (44lbs)
Approx Gate Size	90cm W x 1.5m H (3ft x 5ft)
Gate Frame/Post Shape	Square-to-Square
Min Post Size	25mm+ (1")
Ideal Gate Gap	Fixed at 21.5mm (.85"),Fixed at 13mm (½"), Fixed at 19mm (¾")
Fixing Method	Screw-On

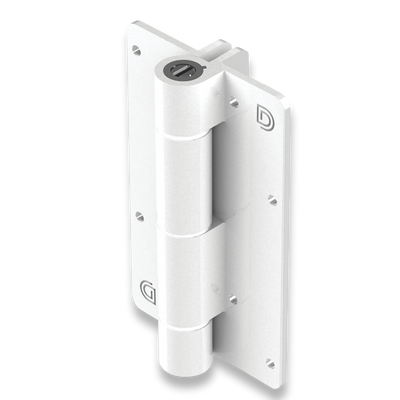

Colour/Finish	Black, Bronze, White
