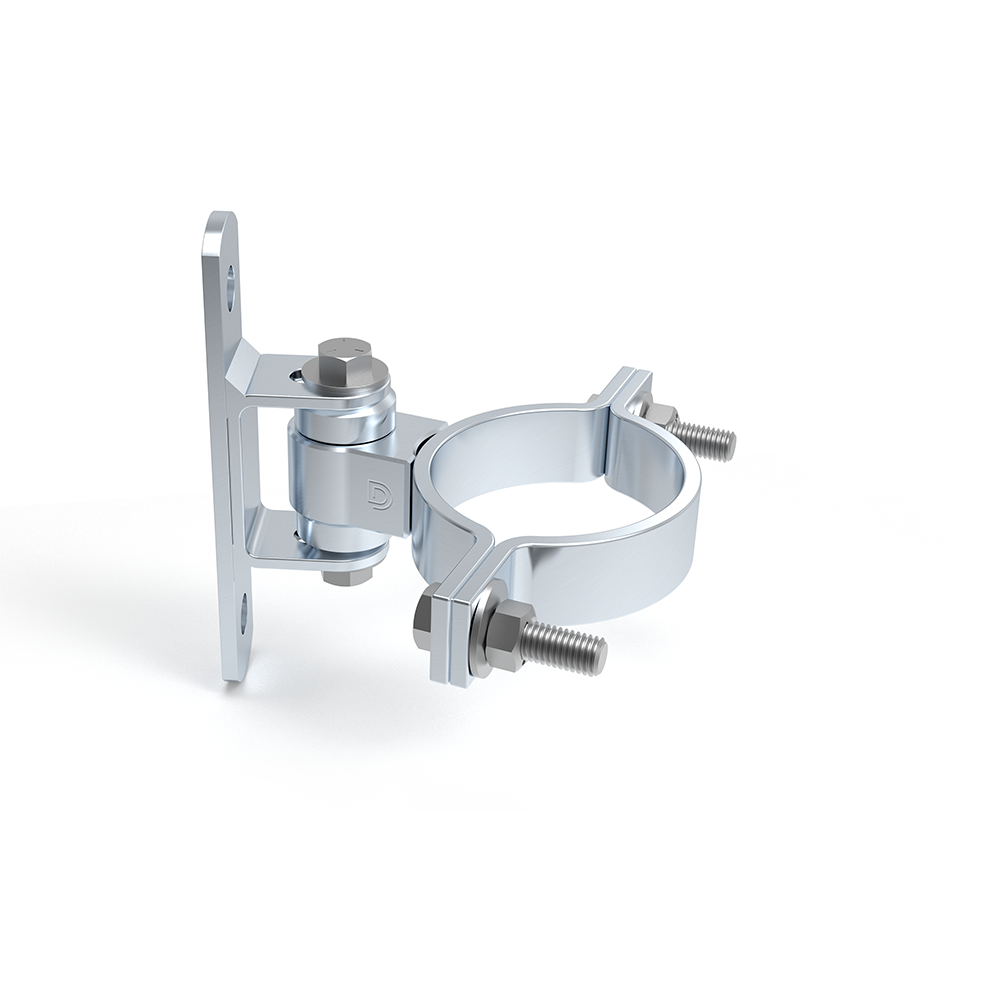

Shut It™ Baby Bolt-On BadAss

  • Designed for gates where welding is not an option
    • One sealed maintenance free bearing
    • Adjustable barrel for precise installations
    • Flat, bolt-on brackets for through bolting
    • Zinc plated
    • Load rating per gate: 270kg (600 lbs)
    • Maximum gate weight: 100kg (250 lbs)
  • Like the Baby BadAss, this hinge Bolt-on Gate Hinge by SHUT IT is CNC machined to the tightest tolerances in the industry. Unlike The Baby BadAss, The Bolt-On Bady BadAss was designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option. The Bolt-On BadAsses produce near frictionless movement with maintenance free usage.
  • Brand Shut It® BadAss
    Product Code CI3750
    Gate Application Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
    Gate Type Non Self-Closing
    Gate Material Steel/Ornamental Iron
    Approx Gate Size 2m H x 3m W - (7ft x 10ft)
    Gate Frame/Post Shape Square-to-Square
    Min Post Size 38mm+ (1½")
    Ideal Gate Gap 76-89mm (3- 3½")
    Fixing Method Bolt-On
    Colour/Finish Zinc
