TruClose® MULTI-ADJUST™ Heavy Duty S3 for Wood

Highly Adjustable Gate Hinges for Wood Gates
• Patented 3-in-1 adjustment, solves gate sag for good!
• Gate gap variance from 5-43mm (3/16" – 1 11/16")
• Self-closes wood gates up 70kg (154 lbs)
• Won’t rust, bind, sag or stain
• Made from super-strong engineered polymer
• Internal stainless steel spring and components
• UV stabilised, self-lubricating durability
• Only one person needed to hang large gates
• Independently tested to comply with AS1926 -12 standards
• Australian Made
• Lifetime Warranty

FITTING INSTRUCTIONS

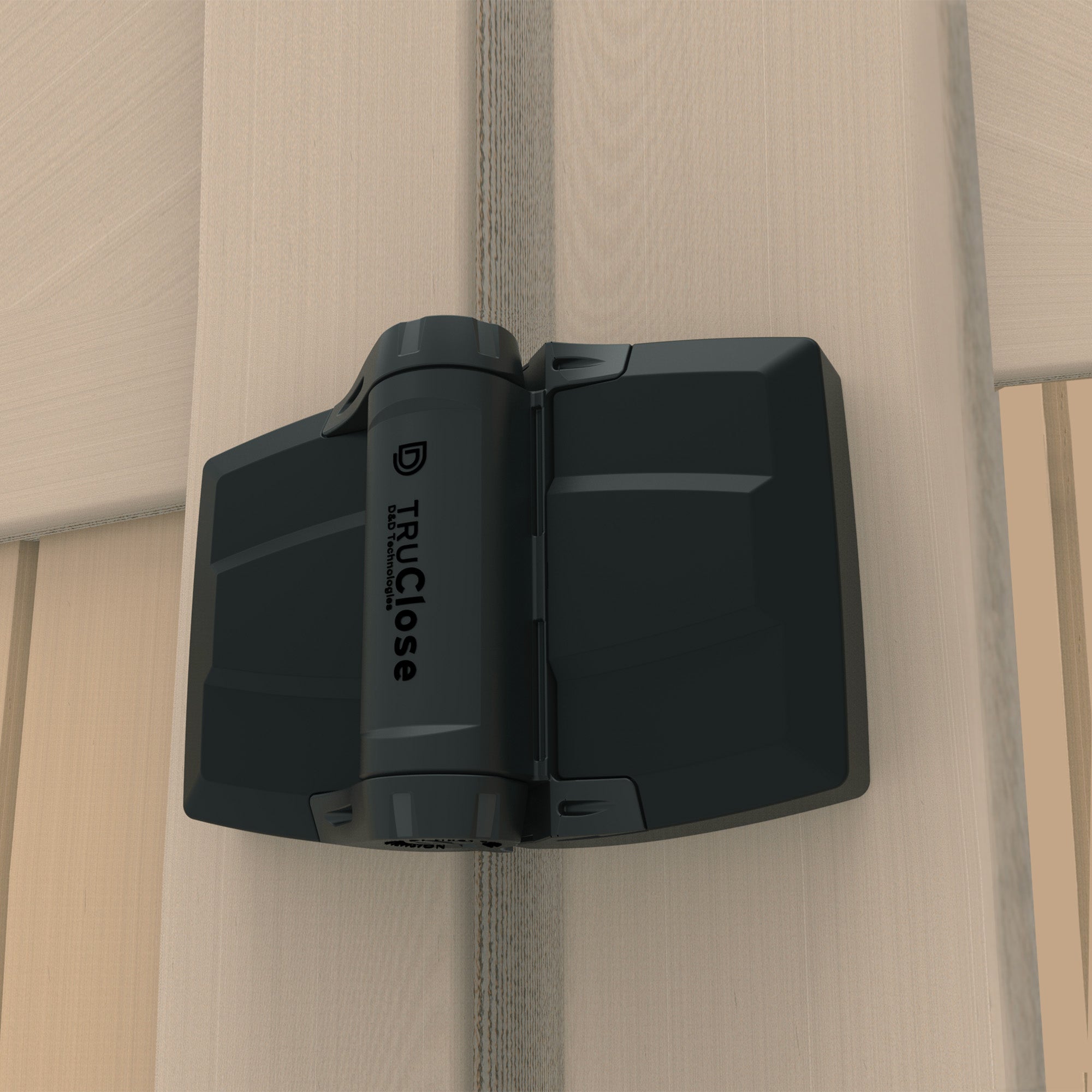

TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer and stainless steel hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The heavy-duty TruClose® MULTI-ADJUST™ Hinges are the world’s most adjustable gate hinges that will solve gate sag for good! Tension adjustable, self closing hinges with easy vertical and horizontal adjustments. They’re ideal for heavy or high-traffic wooden gates and will self close gates weighing up to 70kg (154 lbs).

Brand	TruClose®
Product Code	TCHDMA2S3BT
Gate Application	Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
Gate Type	Self-Closing
Gate Material	Wood
Self-Closing Gate Weight	Up to 70kg (154lbs)
Approx Gate Size	1m H x 1.8m W (3ft x 6ft)
Gate Frame/Post Shape	Square-to-Square
Min Post Size	100mm+ (4")
Ideal Gate Gap	5-43mm (3/16-1 11/16")
Fixing Method	Screw-On
Colour/Finish	Black
