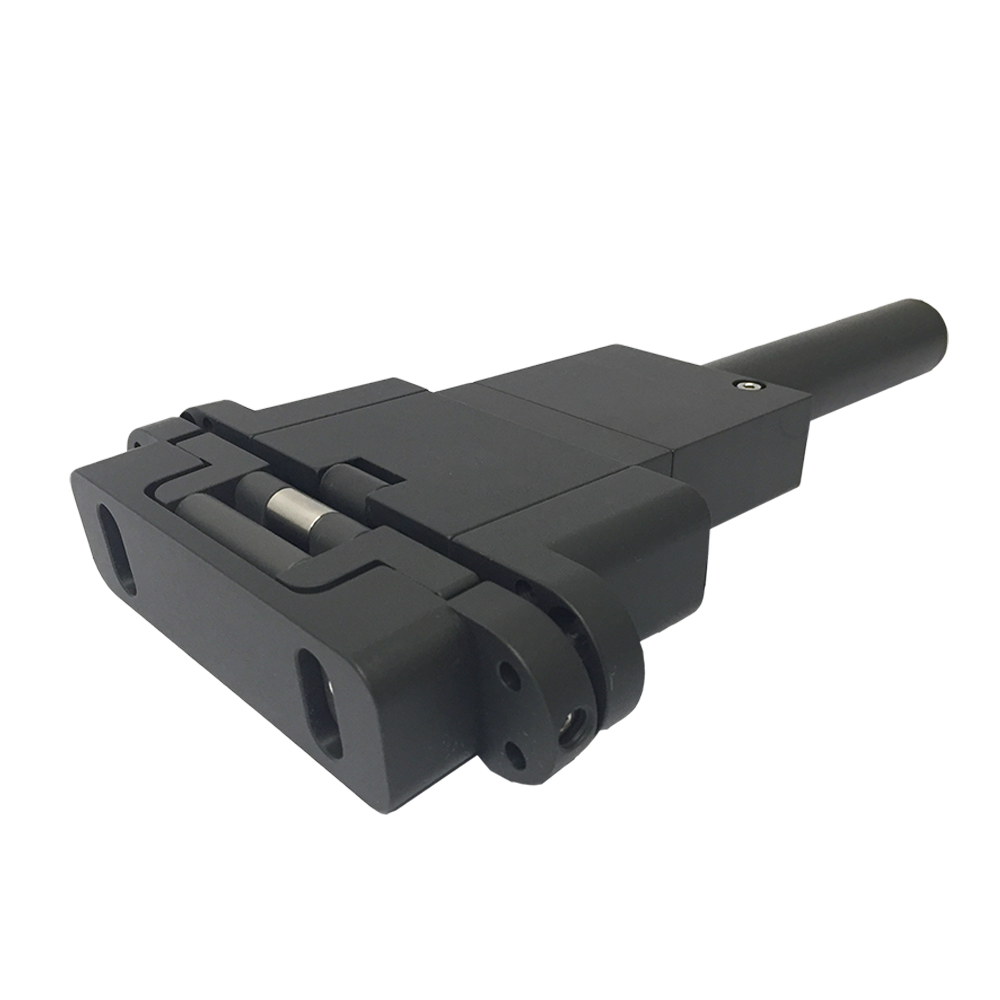

Minimal, slimline design, mounted vertically

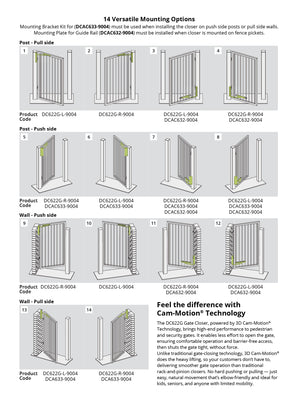

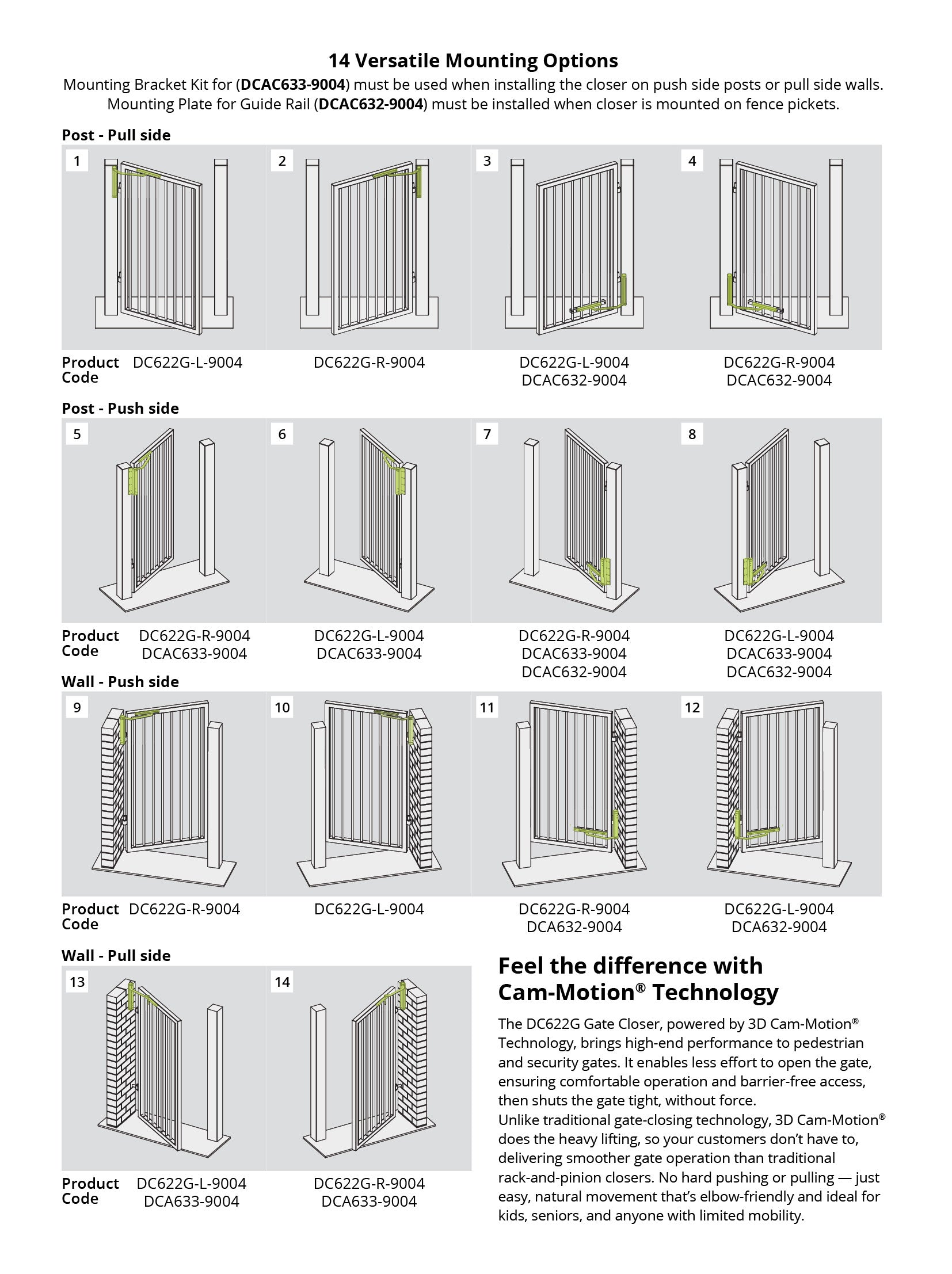

• Versatile Installation
• Can be mounted on posts or walls
• Can be mounted on gates internally or externally
• Left- and right-hand opening models available
• Flexible Compatibility – Install with face or center mounted hinges
• Allows easy opening – Featuring innovative 3D Cam-Motion® Technology*
• Self-closes gates up to 150kg (330 lbs)
• Retrofit – Ideal for opening single gates with existing hinges
• Easy to install – No welding required
• Adjustable – Closing and latch speeds can be altered independently
• Tested Performance – For endurance and climate -30º – +50ºC
| Brand | SureClose® |
| Product Code | DC622G-L-900, DC622G-R-9004, DCA632-9004, DCA633-9004 |
| Gate Application | Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate |
| Gate Type | Self-Closing |
| Gate Material | Aluminium, Steel/Ornamental Iron, Wood, Vinyl |
| Self-Closing Gate Weight | Up to 8150kg (330lbs) |
| Approx Gate Size | 1.3m W x 1.8m H (4.3ft x 6ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 50mm+ (2") |
| Fixing Method | Screw-On |
| Colour/Finish | Black Anodised |
