Q-Bolt™ Drop-Bolt

Padlockable Drop-Bolt
• Powder coated, stainless steel drop-bolt in black or white
• Padlockable; with padlock storage feature

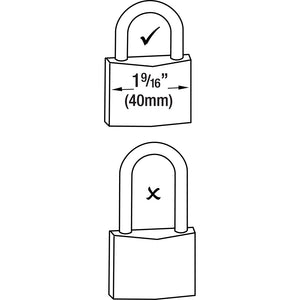

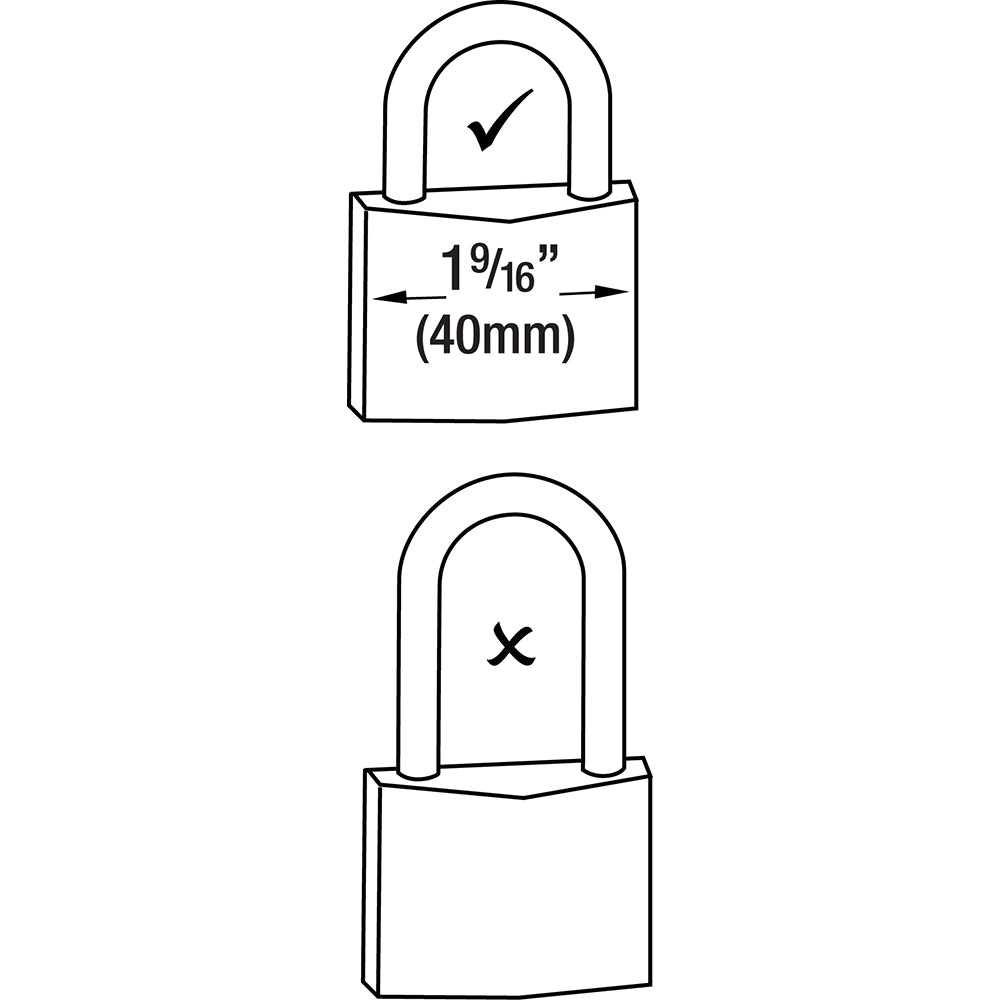

• Use 40mm (1⁹⁄₁₆”) short shackle padlock
• Tough, moulded polymer mounting system
• Retention tabs prevent bolt from dropping and dragging
• Mounting systems for metal and wood/vinyl
• Bolt lengths: 610 and 1020mm (24 and 40")
• Optional Base plate retains bolt into ground
QBolt™ is an affordable, quality drop-bolt for retaining and securing driveway and other residential gates. This drop-bolt offers the option of padlock security, with the facility to store your padlock when not in use. A bolt retention feature prevents the rod from dropping and dragging across the driveways and also keeps the rod from being pulled out of the brackets when mounted to a gate. The housings are made of tough, rust-free polymers and the bolt is made from electro-polished stainless steel. The QBolt comes in two lengths – 610mm and 1020mm (24” and 40”) – to suit different styles of gate. An optional Base Plate helps retain the bolt into the ground surface and provides a neat, stylish finish. All models include alignment side-fixing legs for ease of installation and added fixing strength.

Brand	Q-Bolt™
Product Code	QB124-QB140
Gate Application	Driveway Gate - Double, Driveway Gate - Single, Public/Commercial Gate, Security Gate, Privacy Gate
Gate Material	Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
Approx Gate Size	Any Size
Gate Frame/Post Shape	Square-to-Square
Min Post Size	38mm+ (1½")
Ideal Gate Gap	6mm (¼")
Fixing Method	Screw-On
Colour/Finish	Black, White
Lock Type	Padlockable
